ASUS
Radeon R9 380 STRIX-R9380-DC2OC-4GD5-GAMING 4GB 256-Bit GDDR5 PCI
Express 3.0 HDCP Ready CrossFireX Support Video Card
The AMD Radeon R9 380 video card is built for you to game at maximum
details of 1080p, 1440p, and all the way to 4K resolution. Based on the
latest generation of AMD GCN architecture, this card features 1792
Stream Processors and 4GB 256-bit GDDR5 memory, delivering new level of
performance and capability craved by serious gamers. A rich array of AMD
GPU technologies is included, offering more than one way to elevate
your gaming experience, like AMD Freesync Technology for smooth,
tear-free gaming, Frame Rate Target Control (FRTC) for less power
consumption by limiting the target frame rate, and Virtual Super
Resolution (VSR) that delivers brilliant 4K experience, even on a 1080p
display.

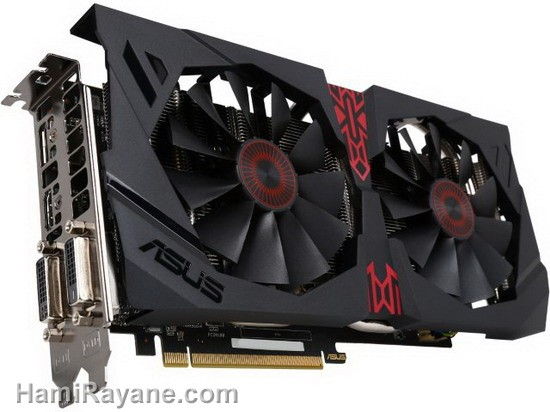

The ASUS STRIX-R9380-DC2OC-4GD5-GAMING card is factory overclocked to
990MHz (970MHz for the reference design), and is packed with an array of
Asus exclusive technologies for optimized performance and experience.
The Auto-Extreme Technology with Super Alloy Power II delivers premium
quality and the best reliability. DirectCU II with Dual Wing-Blade 0dB
fan technology provides 20% cooler and 3X-quieter performance, as well
as silent, 0dB cooling in light games. It also has GPU Tweak II with
Xsplit Gamecaster, provides intuitive performance tweaking, and lets you
stream your gameplay instantly.
Blazing-Fast. Armor-Protected. Super-Cool.
Taken from the ancient Roman and Greek word for owl, Strix means the
keenest hearing and sharpest eyesight. Strix means feeling your
environment so that you detect and react to the slightest movement.
Strix means survival on the very edge of instinct. Strix is in your
blood, as it is in ours.
Game Cool
Exclusive DirectCU II cooling technology outperforms the reference
designs with exclusive 10mm heatpipe that transports 40% more heat away
from the GPU — a first for the industry! The design also includes
1.5X-larger heat-dissipation: this means performance that's 20% cooler
three-times (3X) quieter than the reference for ultra-stable hardcore
gaming with very low noise.
Play Silent
DirectCU II features dual 0dB fans engineered with an exclusive, new
wing-blade design that delivers maximum air flow and improved 105%
static pressure over the heat sink, while operating at 3X quieter
volumes than the reference cards. The 0dB fans also let you enjoy games
like League of Legends and StarCraft in complete silence — because the
fan stops completely when the GPU temperature remains below a set
level*.
AUTO-EXTREME Technology
All ASUS graphics cards are now produced using AUTO-EXTREME Technology,
an industry-first, 100% automated production process that incorporates
premium materials to set a new standard of quality. AUTO-EXTREME
Technology ensures consistent graphics card quality as well as improved
performance and longevity. This new manufacturing process is also
environmentally friendly, eliminating harsh chemicals and reducing power
consumption by 50%.
Eight-phase Super Alloy Power II
ASUS engineers have integrated premium components into their graphics
card design to reinforce overall reliability. Super Alloy Power II
components greatly enhance efficiency, reduce power loss, provide 2X
reduced component buzzing while under full load, and achieve thermal
levels that are approximately 50% cooler than previous designs.
GPU Tweak II with XSplit Gamecaster
Redesigned with an intuitive, all-new UI, GPU Tweak II makes
overclocking easier and more visual than ever, while still retaining
advanced options for seasoned overclockers. With one click, the new
Gaming Booster function maximizes system performance by removing
redundant processes and allocating all available resources
automatically. XSplit Gamecaster lets you easily stream or record your
gameplay right from a convenient, in-game overlay.
Gaming Booster
One-click Performance Up
Visual effects: Boost your performance by turning off windows visual effects.
System Services: Automatically or manually turn off windows services or process.
Memory Defragmentation: Re-arrange & free your system memory without closing any processes.
-
DirectX 12, Vulkan & OpenGL 4.5 APIs
Battle-ready with optimized performance for next-gen APIs (DirectX 12,
Vulkan, OpenGL 4.5, Mantle). It is designed from the ground up to give
you everything you need to enjoy games today and tomorrow.
-
Virtual Super Resolution (VSR) Get quality that rivals 4K, even on a 1080p display while playing your favorite AAA or online games thanks to AMD’s VSR.
-
AMD FreeSync Technology AMD FreeSync
technology puts an end to choppy gameplay and broken frames with fluid,
artifact-free performance at virtually any framerate.
-
AMD LiquidVR Technology AMD's pioneering
Virtual Reality technology is poised to bring better content, comfort,
and compatibility to VR applications – from simulations, gaming,
entertainment, education, social media, travel and medicine to real
estate, ecommerce and more – for a whole new level of presence.
-
AMD Eyefinity Technology Enjoy the ultimate immersive gaming experience with innovative “wrap around” multi-display capabilities.
-
AMD TrueAudio Technology AMD TrueAudio
technology brings the world’s first programmable audio pipeline marking a
new frontier in realism for PC gamers. AMD TrueAudio technology
empowers game developers with a programmable audio pipeline on the GPU,
inviting them to put their unique artistic fingerprint on in-game audio
in the same way that the programmable graphics pipeline brought
unfettered artistic vision to PC graphics. Enabled games can feature
more realistic environmental dynamics, a richer tapestry of sound
effects, breathtaking directional audio and more. AMD TrueAudio
technology enhances audio realism by simulating the human brain’s
perception of real-world sound, working in concert with the user’s
existing audio hardware to recreate a lifelike experience.
Learn more about the ASUS STRIX-R9380-DC2OC-4GD5-GAMING
Model
- Brand
- ASUS
- Model
- STRIX-R9380-DC2OC-4GD5-GAMING
Interface
-
- PCI Express 3.0
Chipset
- Chipset Manufacturer
- AMD
- GPU Series
- AMD Radeon R9 300 Series
-
- Radeon R9 380
-
- 990 MHz (1010 MHz in OC mode)
- Stream Processors
- 1792 Stream Processors
Memory
-
- 5700 MHz (1425 MHz GDDR5)
- Memory Size
- 4GB
-
- 256-Bit
- Memory Type
- GDDR5
3D API
-
- OpenGL 4.4
Ports
-
- 1 x HDMI
-
- 1 x DisplayPort
-
- 1 x Native DVI-I
1 x Native DVI-D
Details
- Max Resolution
- 2560 x 1600
- Eyefinity Support
- Yes
- CrossFireX Support
- Yes
- Cooler
- With Fan
-
- Yes
Features
- Features
- ASUS STRIX R9 380 delivers pumped gaming performance and extreme reliability.
990 MHz engine clock for outstanding performance and gaming experience.
DirectCU
II with 0dB fan technology lets you enjoy light games in complete
silence, and hardcore gaming 20% cooler with 3X-quieter performance.
AUTO-EXTREME Technology with Super Alloy Power II delivers premium quality and best reliability.
GPU Tweak II with Xsplit Gamecaster provides intuitive performance tweaking and lets you stream your gamplay instantly.
Form Factor & Dimensions
- Card Dimensions (L x H)
- 10.67" x 5.47"
- Slot Width
- Dual Slot
Packaging
- Package Contents
- Accessory Bundled:
1 x STRIX Laser Slicker
Software Bundled:
ASUS GPU Tweak 11 & Driver
