- Supports 6th Generation Intel® Core™ Processor
- Dual Channel DDR4, 4 DIMMs
- Fast USB 3.1 with USB Type-C™ - The World’s Next Universal Connector
- 3-Way Graphics with Premium PCIe Lane
- PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
- 3 SATA Express Connectors for up to 16Gb/s Data Transfer
- 115dB SNR HD Audio with Built-in Rear Audio Amplifier
- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
- Intel® GbE LAN with cFosSpeed Internet Accelerator Software
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- GIGABYTE UEFI DualBIOS™ Technology
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel®
Core™ processors, a 14nm desktop CPU which features improved
performance, power efficiency and support for DDR4 memory, bringing
cutting edge features and ultimate performance to your next PC build.
Fast USB 3.1 Solution
The latest USB 3.1 offers a staggering
10Gb/s transfer speed, 2x faster than USB 3.0 and backward
compatibility with existing USB devices.
Connecting the Future - USB Type-C™:
The World's Next Universal Connector
The USB Type-C™ port with USB 3.1 support is a robust and slim
connector for all of your devices with reversible plug orientation.
Turbo B-Clock:
Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock
Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability
to change their BCLK Frequency to a desired value of their choice. With
the new linear range adjustment option of the Tuning IC, ranges from
90MHz to 500MHz are now possible, so that overclockers are not limited
to the 5% ranges of traditional straps.
* Turbo B-Clock overclocking range may vary according to CPU capabilities.
Fast Onboard Storage with 32Gb/s M.2
GIGABYTE M.2 solution offers considerably faster storage performance
and support for both PCIe and SATA interface for M.2 SSD devices.
All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows
users to fine-tune their system settings or adjust system and memory
clocks and voltages in a Windows environment. With Smart Quick Boost,
one click is all it takes to automatically overclock your system, giving
an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs
that help you get the most from your GIGABYTE motherboard. Using a
simple, unified user interface, GIGABYTE APP Center allows you to launch
all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps
that allow your smart phones/tablet devices to communicate, share
resources, and control your desktop PC via a wireless connection.
Next Generation SATA Express
SATA Express combines the benefits of PCI Express and SATA to provide
much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
The above photos are for reference only.
2-Way SLI™/3-Way CrossFire™ Multi-Graphics
Multi-graphics configuration offers better graphics performance for
gaming enthusiasts who demand the highest frame rates without
compromising on resolution.
Intel® GbE LAN with cFosSpeed
Intel® GbE LAN features cFosSpeed, a network traffic
management application which helps to improve network latency,
maintaining low ping times to deliver better responsiveness in a crowded
LAN environments.
The above photos are for reference only.
High Definition Audio Design
The Realtek ALC1150 is a high-performance multi-channel high definition
audio codec that delivers an exceptional audio listening experience
with up to 115dB SNR, ensuring users get the best possible audio quality
from their PC.
High Quality audio capacitors deliver the highest quality sound
resolution and sound expansion to create the most realistic sound
effects for professional gamers.
Ambient LED
GIGABYTE motherboards feature LED lighting for the audio guard path,
providing a cool, custom look to your rig. Not only does the Audio Noise
Guard protect the board's sensitive analog audio components, but its
LEDs can also be programed to beat at the rhythm of the music you are
listening to, or pulse at a soothing pace to create a great atmosphere
to enhance the environment of your game, movie or music.
* The below photos are for reference only.
15μ Gold Plated CPU Socket Design
GIGABYTE motherboards come equipped with a 15 micron thick gold plated
CPU socket, which means that enthusiasts can enjoy absolute reliability
and longevity for the CPU socket overtime, without having any concerns
about corroded pins or bad contacts.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an
exclusive technology from GIGABYTE that protects arguably one of your
PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that
your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making
users protected from BIOS failure due to virus attack, hardware
malfunction, improper OC settings or power failure during the update
process.
4K Ultra HD Support
4K resolution is the next technological milestone in high-definition
content delivery, utilizing approximately 4,000 pixels on the horizontal
axis, more than four times today's standard HD pixel density. GIGABYTE
motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
HDMI™ - The Next Generation Multimedia Interface
HDMI™ is a High-Definition Multimedia
Interface which provides up to 5Gb/s video transmitting bandwidth and
8-channel high quality audio all through a single cable. Able to
transmit superior, uncompressed digital video and audio, HDMI™ ensures
the crispest rendering of digital content up to 1080p without the
quality losses associated with analog interfaces and their
digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP
(High-bandwidth Digital Content Protection), allowing the playback of
Blu-ray/HD DVD and other protected media content.
Box Contents
| CPU |
- Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
| Chipset |
- Intel® Z170 Express Chipset
|
| Memory |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4
GB of physical memory is installed, the actual memory size displayed
will be less than the size of the physical memory installed.
- Dual channel memory architecture
- Support for DDR4 3466(O.C.) /3400(O.C.) /3333(O.C.) /3300(O.C.)
/3200(O.C.) /3000(O.C.) /2800(O.C.) /2666(O.C.) /2400(O.C.) /2133 MHz
memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics | Integrated Graphics Processor- Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.
- Support for up to 3 displays at the same time
- Maximum shared memory of 512 MB
|
| Audio |
- Realtek® ALC1150 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
| LAN |
- Intel® GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the
PCIEX8 slot is populated, the PCIEX16 slot will operate at up to x8
mode.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2 slot. When the
PCIEX1_2 slot is populated, the PCIEX4 slot will operate at up to x1
mode.
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 2 x PCI slots
|
| Multi-Graphics Technology |
- Support for 3-Way/2-Way AMD CrossFire™and 2-Way NVIDIA® SLI™ Technology
|
| Storage Interface | Chipset:
- 1 x M.2 Socket 3 connector
- 3 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-8 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
|
| USB | Chipset:
- 7 x USB 3.0/2.0 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+ASMedia® ASM1142 chip:
- 1 x USB Type-C™ port on the back panel, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red) on the back panel
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 3 x SATA Express connectors
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x water cooling fan header (CPU_OPT)
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 3.0/2.0 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Thunderbolt™ add-in card connector
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper
|
| Back Panel Connectors |
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.1 support
- 1 x USB 3.1 Type-A port (red)
- 3 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
|
| I/O Controller |
- iTE® I/O Controller Chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System/Chipset temperature detection
- CPU/CPU OPT/System fan speed detection
- CPU/System/Chipset overheating warning
- CPU/CPU OPT/System fan fail warning
- CPU/CPU OPT/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS |
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on
motherboard specifications.
3D OSD
@BIOS
Ambient LED
AutoGreen
Cloud Station
EasyTune
Easy RAID
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
|
| Bundle Software |
- Norton® Internet Security (OEM version)
- Intel® Smart Response Technology
- cFosSpeed
|
| Operating System |
- Support for Windows 10/8.1/7*
* Please download “Windows® USB Installation Tool” to install Windows® 7.
|
| Form Factor |
- ATX Form Factor; 30.5cm x 22.5cm
|
| Box Contents |

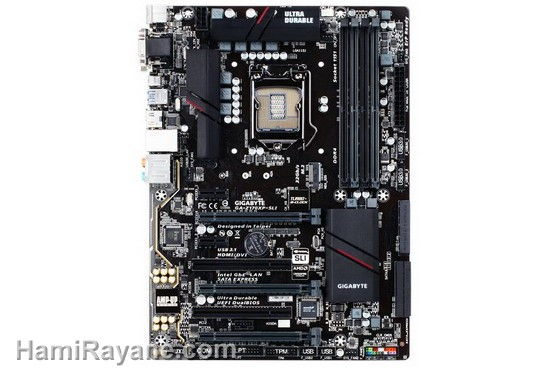

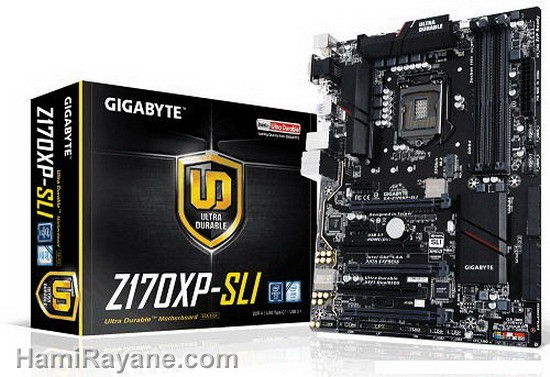

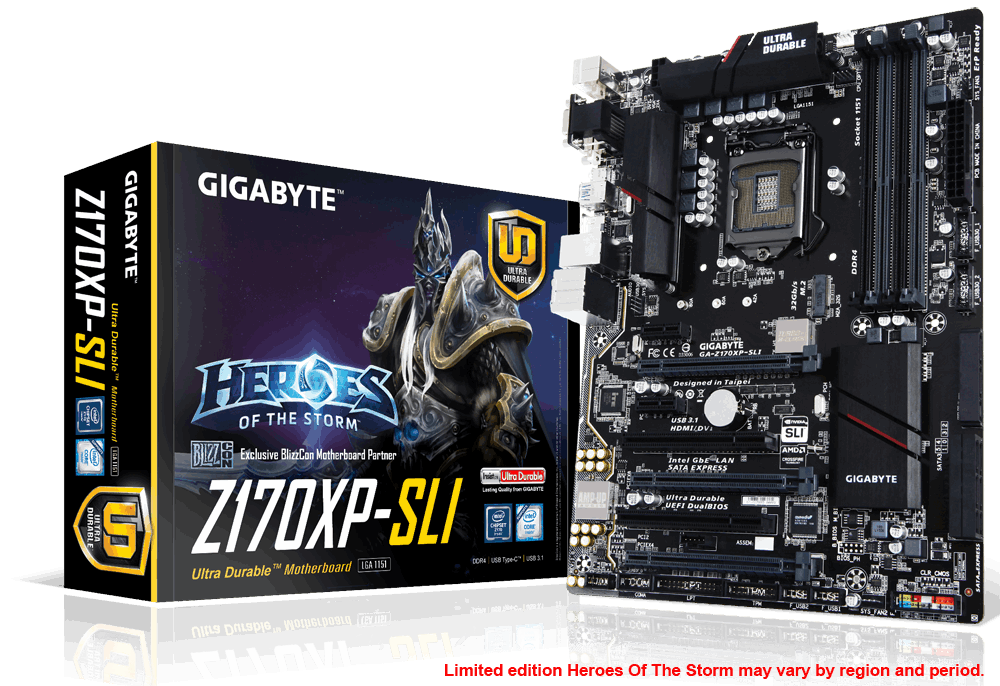

- GA-Z170XP-SLI motherboard
- Four SATA cables
- Motherboard driver disk
- I/O Shield
- User's Manual
- One 2-Way SLI bridge connector
- Quick Installation Guide
- One G Connector
|
