178° Ultra Wide View Meets a Super Narrow Frame Design

• Ideal for a multi-screen solution with a super narrow frame
• Best for work and play with Full HD 1080p visual quality and 178° ultra wide viewing angle IPS panel
• ASUS VividPixel Technology for crystal-clear and detail-oriented enjoyment
• MHL (Mobile High-Definition Link) function for Enhanced Viewing from Mobile to Monitor

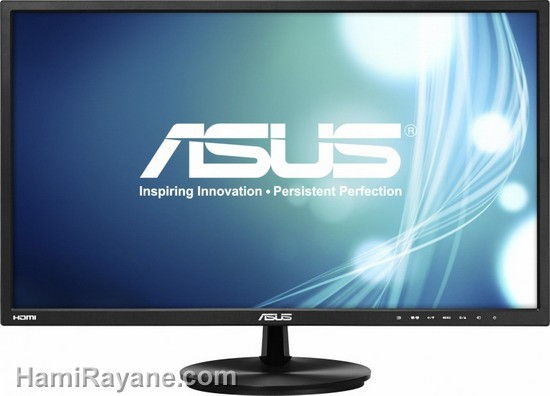

VN248H

• DisplayPanel Size: Wide Screen 23.8"(60.5cm) 16:9
  Panel Type : IPS
  True Resolution : 1920x1080
  Full HD 1080P : Yes
  Pixel Pitch : 0.2745mm
  Brightness(Max) : 250 cd/㎡
  ASUS Smart Contrast Ratio (ASCR) : 80000000:1
  Viewing Angle (CR≧10) : 178°(H)/178°(V)
  Response Time : 5ms (Gray to Gray)
  Display Colors : 16.7M
• Video FeatureSPLENDID Video Preset Modes : 6 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode)
• Audio FeaturesStereo Speakers : 2W x 2 Stereo RMS
• Convenient HotkeySPLENDID Video Preset Mode Selection
  Auto. Adjustment
  Brightness Adjustment
  Contrast Adjustment
  Volume Adjustment
  Input Selection
  QuickFit
• I/O PortsSignal Input : HDMI/MHLx 2, D-Sub
  PC Audio Input : 3.5mm Mini-Jack
  AV Audio Input : HDMI
  Earphone jack : 3.5mm Mini-Jack
• Signal FrequencyAnalog Signal Frequency : 30~80 KHz(H)/ 55~75 Hz(V)
  Digital Signal Frequency : 30~80 KHz(H)/ 55~75 Hz(V)
• Power ConsumptionPower ON: < 23W*
  Power Saving Mode : < 0.5W
  Power Off Mode : < 0.5W
• Mechanical DesignChassis Colors : Black
  Tilt : +20°~-5°
  VESA Wall Mounting : 100x100mm
• SecurityKensington lock
• DimensionsPhys. Dimension with Stand(WxHxD) :554.5x393x194.2mm
  Phys. Dimension without Stand(WxHxD):554.5x328.9x47.3mm(For VESA Wall Mount)
  Box Dimension (WxHxD) : 610x476x130mm
• WeightNet Weight (Esti.): 4.0 kg
  Gross Weight (Esti.):6.1 kg
• AccessoriesVGA cable
  Audio cable
  Power cord
  Quick start guide
  HDMI-to-DVI cable (Optional)
  Warranty Card
  MHL cable (Optional)
• Compliance and StandardsEnergy Star®, BSMI, CB, CCC, CE, CEL level 0, C-Tick, CU, EPEAT (Gold) by region , FCC, Gost-R, RoHS, Taiwan Green Mark, TCO6.0, UL/cUL, VCCI, WEEE, WHQL (Windows 8, Windows 7)
• Note*Based on Energy Star 6.0 standard
• Experience a Multi-screen Solution with a Super Narrow Frame The ASUS VN series features compact dimensions- this 23.8” display has a super narrow bezel of just 1cm, bringing a broader and better vision without compromising on style and comfort. Its pedestal boasts a sleek concentric circle design and the rear bezel comes with a textured finish that is scratch-proof. The VN248H is also VESA wall mount compatible, and has the capabilities to turn into a stunning multi-screen solution

  Multiple VN248 Displays are capable of creating a stunning video wall with their super narrow frames Amazing Visuals for Work and Play
  178° Wide Viewing Angle IPS Technology The ASUS VN248H features AH-IPS (Advanced High-Performance In-Plane Switching) display technology for superior color accuracy, a brighter image from increased backlight transmission and lower power consumption. VN248H uses a 178° (H)/ 178° (V) ultra-wide viewing angles AH-IPS display that eliminates color shift from almost any direction.


  Full HD with dual HDMI/MHL Inputs VN248H leads you to enter a big and spectacular world of colors with Full HD 1080p (1920x1080) support and rich connectivity including dual HDMI/MHL and D-sub inputs Splendid™ Video Intelligence Technology The exclusive Splendid Video Intelligence Technology optimizes video performance and image fidelity by enhancing color, brightness, contrast, and sharpness. 6 preset video modes (Scenery, Theater, Game, Night View, sRGB and Standard) can be selected via a hotkey

  VividPixel Technology for Best Picture Quality ASUS VividPixel Technology helps enhance image outlines and reduce noise bars for crystal-clear and detail-oriented viewing. Monitors without VividPixel Blur happens if the original image is in low resolution Monitors with VividPixel VividPixel generates high-quality images on screen


  MHL (Mobile High-Definition Link) for Enhanced Viewing from Mobile to Monitor Mobile High-Definition Link (MHL) technology allows users to experience any MHL supported mobile devices on the big screen while simultaneously charging the devices.

  Smart Contrast Ratio for lifelike visuals With 80,000,000:1 ASUS Smart Contrast Ratio (ASCR) and 300cd/m² brightness, the VN248H enhances display contrast and sharpness by adjusting backlight luminance to achieve the deepest black tones and brightest whites, resulting in extra-clear visuals that truly come to life. ASUS Exclusive QuickFit Virtual Scale (patent-pending)
  ASUS includes its exclusive QuickFit Virtual Scale feature with the VN248H, allowing you to preview photos and documents on-screen in their actual size prior to printing. It can be activated via a monitor hotkey, and serves as a highly useful guide to accurately view and edit photos in their native size.


  Extensive Connectivity and Built-in Stereo Speakers for Multimedia Enjoyment VN248H comes with rich connectivity including dual HDMI/ MHL and D-sub so that users could easily connect it to Full HD Blu-ray Disc players and myriad HD playback devices like DVD players and set-top boxes for limitless entertainment and multimedia enjoyment with the built-in stereo speakers.


  User-friendly Design
• Built-in hidden stereo speakers enable audio enjoyment together with true-to-life visual
• I/O port hidden behind the detachable rear cover to keep the back bezel simple and clean
• VESA Wall Mount Standard (100 x 100 mm )
• 25° ( forward 5°, backwards 20° )Tilting Angle
• KENSINGTON Security Lock.

Complete After-Sale Service

• 3-year system warranty
• 3-year panel warranty
• Free pick-up service (in specific countries)

Green in Mind Greener Materials

• Mercury-free LED-backlit panel
  Corrugated cardboard packaging with at least 80% recycled content
• Slim-flat packaging allows more cartons to be fitted per cargo, reducing transportation costs and CO₂ emission

Energy and Planet Saving

• 37.2k Wh electricity saving
• 23.6kg reduction in CO₂emissions, equivalent to:
  1.9 trees planted
  2 years of oxygen for a family of four

Award-Winning Design ASUS Design engineers penned the lines of the VN series with people-centered approach, giving it a super narrow frame, and a rear cover with more expressive 3D patterns. Having won 2012 Good Design Award in Japan and 2013 iF Design Award in Germany, the VN series monitors meet the highest expectations of product quality, design aesthetics, technology and usability without compromises.
