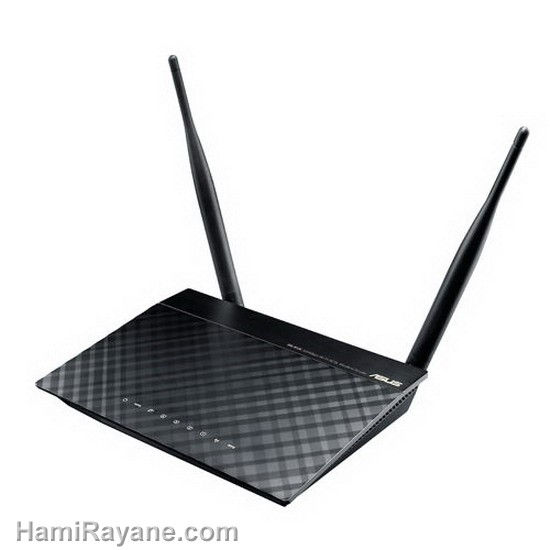

Wireless-N300 ADSL Modem Router

• 11n Wireless ADSL modem Router.
• EZ WPS connection with physical WPS push button.
• Eco-friendly, up to 72% power saving.

Add to comparison list

PrintMore Sharing ServicesShare

Back I/O

Save the planet and your pocket

Compared with generic Wireless-N routers, ASUS ECO-WiFi CPU reduces up to 72% of energy consumption and utility cost.

* The result given was of an internal testing methods comparing typical router, with standby, normal and heavy traffic. Testing criteria: [Standby mode] Only WAN port is connected. [Normal traffic] 1 wired connected PC and 1 wirelessly connected laptop for P2P download. [Heavy traffic] 4 wired connected PCs and 2 wirelessly connected laptops for P2P download. Utility cost is calculated based on 2011 US household avg. electricity price, all taxes included.

EZ WPS Connection

EZ WPS Enables you to set up a secure wireless network in 2 steps

Press the WPS button on the wireless adapter.
The WPS Wizard pops up and starts searching for WPS-supported routers.

Press and hold the WPS button on your ASUS router for at least four seconds to sync the secure Wi-Fi connection with the new device, and setup is done

Wi-Fi on/off

Simply press the WPS/Wi-Fi button on your ASUS router to instantly turn Wi-Fi on or off and easily save energy with no long setup or menus.
*Feature only available on products sold in EU markets.

• Network StandardIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4
• Product SegmentN300 complete networking; 300Mbps
• Wi-Fi Data Rate802.11b : 1, 2, 5.5, 11Mbps
  802.11g : 6,9,12,18,24,36,48,54Mbps
  802.11n : up to 300Mbps
• xDSL Data RateG.992.1 (T1.413)
  G.992.2 (G.dmt), G.lite
  G.992.3 (G.bis/ADS L2)
  G.992.5 (ADSL2+)
  Annex L (reach extended ADSL2)
• AntennaFixed 2 or 5 dBi antenna x 2
  *Antenna signal power may vary by region due local regulations and requirements
• LED IndicatorPower, ADSL, Internet, WLAN, LAN x 4
• ButtonWPS Button, Reset Button, Power Button
• Ports1 x RJ11 for ADSL
  4 x RJ45 for 10/100 BaseT for LAN
• Operating Frequency2.4GHz
• Operation Channel11 for N. America
  13 Europe (ETSI)
• Security64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support
• ManagementWeb-based GUI configuration
  Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
  Configuration backup and restore
  Diagnostics
  Log & Trace function
• Power AdapterAC Input : 100 ~240 V(50~60HZ)
  DC Output : 12 V/0.8 A
• CertificatesCE
• Dimensions168 x 124 x 30 mm (WxDxH)
• Weight300 g (Device Only)
• EnvironmentalOperating Temperature: -10 °C to 50 °C (14 °F to 122 ºF)
  Storage Temperature: -40 ° to 60 ° C (-40 °F to 140 °F)
  Operating Humidity: 5 % to 95 % (Non-condensing)
  Storage Humidity: 5 % to 95 % (Non-condensing)
• OS SupportWindows® 8 , 32bit/64bit
  Windows® 7 , 32bit/64bit
  Windows® Vista , 32bit/64bit
  Windows® XP , 32bit/64bit
  Mac OS X
  Linux

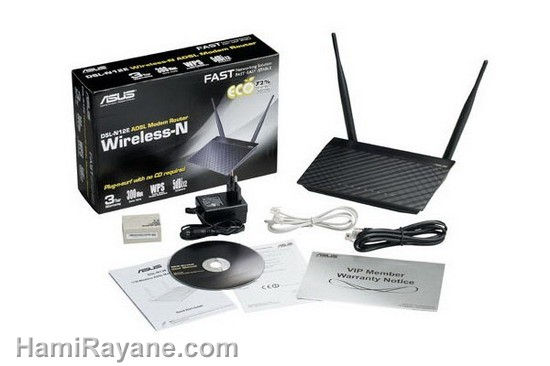

• Package ContentDSL-N12E Wireless ADSL modem Router
  Power adapter
  Support CD (user manual, QSG)
  RJ45 cable
  RJ11 cable
  Quick Start Guide
  Warranty card
