Cooler Master G650 & G650 Semi-Modular

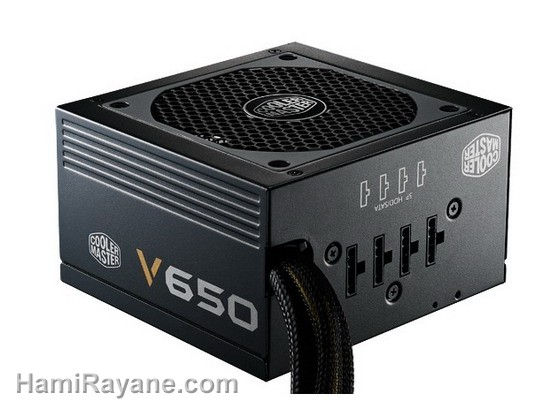

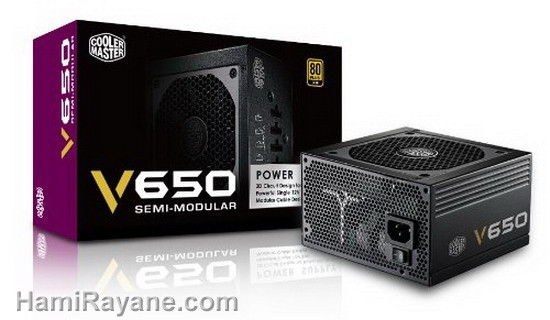

V650 Semi-Modular

• 100% Japanese capacitors
• Unique 3D circuit design offers high efficiency and improves the heat dissipation. It reduces the unnecessary cables which results in much lower crosstalk, signal noise and improves airflow
• Powerful Single +12V rail for superior load balancing and VGA compatibility
• Modular cable designs for better cable management
• Japanese capacitor ensures an extended lifetime and excellent holdup times, in case of power fluctuation.
• Custom DC-DC module design offers higher efficiency and voltage stability
• 80 PLUS Gold certified: up to 92% efficiency @ typical load
• Reliable 5 year warranty

PRODUCT HIGHLIGHT

Intelligent 120mm fanThe intelligent 120mm fan speed controller with honey combo mesh increases airflow for better heat dissipation.Modular Cable SystemOnly use the cables you need, no unnecessary cable mess! Building a clean and tidy system with excellent airflow has never been this easy and convenient.Unique 3D Circuit DesignIt offers high efficiency, improves the heat dissipation and reduces the unnecessary cables which results in much lower crosstalk, signal noise.Japanese capacitorIt ensures an extended lifetime and excellent hold up timesCustom DC-DC ModuleOur custom 12V to 3.3V and 5V module design offers notably higher efficiency and voltage stability than other designs.

CONNECTORS

PERFORMANCE

AC INPUT / DC OUTPUT

Model	RS-650-AMAA-G1
Type	Intel Form Factor ATX 12V V2.31
Dimension (W x L x H)	150 x 140 x 86mm / 5.9 x 5.5 x 3.4 inch
Input Voltage	90-264Vac (Full Range)
Input Current	9 - 4.5A
Input Frequency Range	60 - 50Hz
PFC	Active PFC (>0.9 typical)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	90% Typically
MTBF	>100,000 Hours
Protection	OVP/UVP/OPP/OTP/SCP/OCP
Output Capacity	650W
Operation Temperature	0~40°C
Regulatory	CE/TUV/FCC/CCC/BSMI/KCC/RCM/EAC/UL
Fan	120mm intelligent fan
Certifications	80 Plus Gold
Connector	MB 20+4 Pin x 1 CPU12V 4+4 Pin x 1 PCI-e 6+2 Pin x 2 SATA x 8 4Pin Peripheral x 6 4Pin Floppy x 1
