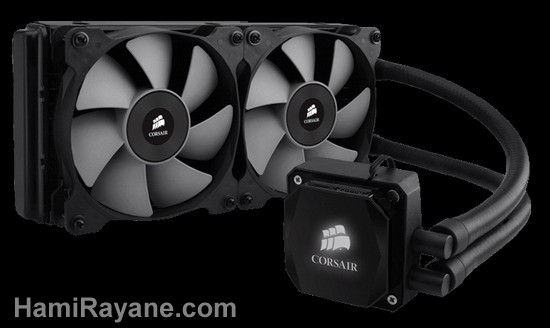

CORSAIR Hydro Series H100 (CWCH100) Extreme Performance Liquid CPU Cooler
The Hydro Series H100 features the latest cooling performance
technology, simple installation, and maintenance-free operation. It
includes a low-profile, light-weight cooling unit with a micro-channel
copper cold plate and a split-flow manifold for superior cooling, and
digital fan control, allowing the user to select between low-noise,
balanced, and maximum cooling modes. The top-of-the-line H100 uses a
dual 120mm radiator for even better performance, and is compatible with
PC cases that provide mounting capability for a standard 240mm radiator.
The H100 also comes with a Corsair Link digital connector, allowing
them to take full advantage of the new Corsair Link system for
monitoring and control. For systems with the Corsair Link Commander
hardware installed, users have even more control of cooling performance
and sound levels.
The Hydro Series H100: Go Long.
Featuring a full 240mm radiator and two 120mm fans, the Corsair Hydro
Series H100 extreme performance liquid CPU cooler is designed to deliver
cooling performance that meets the needs of even the most demanding
enthusiast.
Ready for Corsair Link Digital.
The H100 works great with Corsair Link, an ecosystem of hardware and
software components designed to give you unprecedented control over your
PC. Connect your H100 to the Corsair Link Commander (available
separately) and monitor a wide range of parameters, including pump
speed, coolant temperature, and fan speed, and customize your own
performance profiles.
Control at your fingertips.
The low-profile integrated pump and cold plate includes push-button
control so you can select the fan speed and cooling performance setup
that best suits your needs. The cool white LED display lets you know at a
glance which profile is being used.
Easy installation, zero maintenance.
You no longer need to invest into finicky modular watercooling systems
to get serious CPU cooling performance. Each Hydro Series Liquid CPU
Cooler is a sealed, closed-loop system that comes pre-filled and never
needs refilling. Tubing is constructed from low-evaporation FEP for a
long lifespan. Even the thermal compound is pre-applied. You'll be up
and running in minutes.
The latest cooling technology.
The H100 includes a low-profile, light-weight cooling unit with a
micro-channel copper cold plate and a split-flow manifold. The result of
all this attention to fluid dynamics is CPU cooling that's remarkably
efficient, with a total noise level that's lower than most stock CPU
fans.
Package Contents
-
Corsair H100 Liquid CPU Cooler
-
Two 120mm fans
-
Mounting screws for fans and radiator
-
Mounting brackets for Intel LGA 775/1155/1156/1136/2011 and AMD AM2/AM3
-
Quick Start Guide
Compatibility
-
Intel LGA 775, 1155, 1156, 1366, and 2011
-
AMD sockets AM2 and AM3
-
Requires a case with dual 120mm fan mounts with 15mm spacing for a 240mm radiator
Corsair Hydro Series CPU Coolers Comparison Chart
Model #
H40
H60
H70 CORE
H80
H100
Cold Plate
Aluminum
Copper
Copper
Copper
Copper
Radiator size
120mm x 25mm
120mm x 25mm
120mm x 38mm
120mm x 38mm
240mm x 25mm
Radiator material
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Tubing type
Rubber
FEP
FEP
FEP
FEP
Fan size / quantity
120mm
120mm
Fan not included
120mm x 2
120mm x 2
Fan RPM (max)
2000
1700
N/A
2600
2600
Integrated fan control
Intel 775
Intel 1155/1156
Intel 1366
Intel 2011
AMD AM2/AM3
Warranty
2 Year
5 Year
5 Year
5 Year
5 Year
Corsair Link
No
Ready
No
Digital
Digital
Learn more about the Corsair H100 (CWCH100)
General
- Brand
- CORSAIR
- Series
- Hydro Series
- Model
- H100 (CWCH100)
-
- Liquid Cooling System
Block
- Block Compatibility
- AMD FM2 / AM2 / AM3
Intel LGA 775 / 1155 / 1156 / 1366 / 2011
-
- Copper
Radiator
- Radiator Dim.
- 122 x 275 x 27 mm
-
- Aluminum
Fan
- Fan Dim.
- 120 x 120 x 25 mm, 2 fans
- Fan RPM
- 1300 RPM (Low Noise), 2000 RPM (Balanced), 2500 RPM (High Performance)
- Fan Air Flow
- 46 - 92 CFM
- Fan Noise
- 22 - 39 dBA
Features
- Features
- Featuring
a full 240mm radiator and two 120mm fans, the Corsair Hydro Series H100
extreme performance liquid CPU cooler is designed to deliver cooling
performance that meets the needs of even the most demanding enthusiast.
Tubing: Low-permeability for near-zero evaporation
Package Contents
- Package Contents
- Corsair Cooling H100 CPU Cooler
Two 120mm fans
Multi-platform mounting kit (Intel LGA 1366, 1155, 1156, and 775, AMD AM2/AM3)
Thermal compound (pre-applied)
Quick Start Guide
