Features

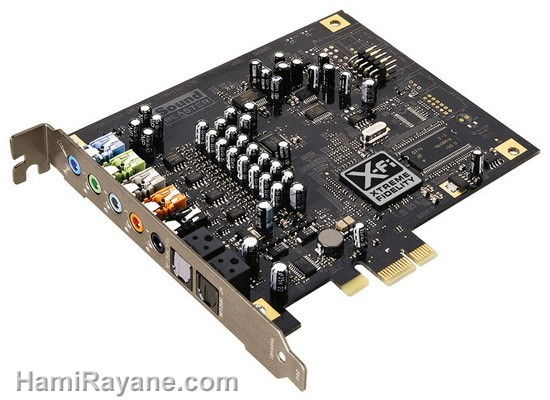

Premium Sound Blaster quality Featuring High-Fidelity audio performance with the Digital-Analog (D/A), Analog-Digital (A/D) converters, together with a signal-to-noise ratio (SNR) of 122dB with 0.001% (THD) distortion, the Sound Blaster X-Fi Titanium HD is the ideal choice for the demanding audiophile.
Audiophile components The Sound Blaster X-Fi Titanium HD features high quality components offering audiophile-grade performance, designed to eliminate noise, while dramatically improving sound field dynamics in the high and mid tones.
Superior headphone experience Enjoy pristine audio in private anywhere with the superlative headphone output featuring an amazing 115dB, 24-bit/96kHz support in High-Definition (HD) quality sound for original playback.
Personalize your sound with upgradeable components For the discerning music listener, you can personalize your listening experience with the swappable OP-amp sockets on the sound card to tailor sound to the way you want it.
THX TruStudio Pro for unprecedented audio realism The ground-breaking THX TruStudio Pro sound effects will transform your experience into a true High-Definition (HD) multimedia emotional journey.
Hardware accelerated EAX 5.0 for ultimate gaming audio Hardware-powered 3D positional audio and EAX 5.0 effects provide stunning audio realism over both headphones and speakers without affecting your frame-rates.
Pristine audio recordings with ultra low latency ASIO recording support with latency as low as one millisecond and minimal CPU load for precise audio recordings.
Immersive digital home entertainment Dolby Digital and DTS encoding enable a simple one-step single-cable connection to home entertainment systems with included optical cables, for compelling surround sound.
Works with Windows 8 We have updated audio drivers that will allow you to enjoy the ultimate in Sound Blaster performance in Windows 8. Technical Specifications
| | |
General |
| Digital Audio Converter (DAC): | | TI Burr-Brown PCM 1792A |
| Signal to Noise Ratio (SNR) (20kHz Low-pass filter, A-Wgt): | | 122dB |
| Maximum Playback Quality: | | 5.1 : Up to 96kHz
Stereo: Up to 192kHz |
| Frequency Response @96kHz: | | Front Channel Out : 10Hz to 90kHz
Headphone (330Ohms): 10Hz to 46kHz
Headphone (33Ohms): 10Hz to 46kHz |
| 16-bit to 24-bit Playback Sample Rates: | | 8,11.025,16, 22.05, 24, 32, 44.1, 48, 96, 192 (kHz) |
| 16-bit to 24-bit Recording Sample Rates: | | 8,11.025,16, 22.05, 24, 32, 44.1, 48, 96 (kHz) |
| Maximum Recording Quality: | | Up to 24-bit/96kHz |
| I/O Connectivity: | | Headphone : 1x 3.5mm jack
Line Out: RCA with combo S/PDIF in
Optical Out: S/PDIF
Microphone In: 1x 3.5mm jack
Line In: RCA (L / R) |
| Amplified Headphone Output: | | Up to 300 ohms |
| Swappable Op-Amps: | | Yes |
| Up-mixing of Stereo to Multi-Channels: | | Yes |
| |
Technology |
| Audio Technology: | | THX® TruStudio Pro™ |
| Speaker/Headphone Switch: | | No |
| Dolby Digital Live: | | Encoding |
| Scout Mode™: | | No |
| Environmental Audio eXtensions: | | EAX Advanced HD 5.0 |
| Max. 3D Voices: | | 128 |
| ASIO | | Support at
16-bit/44.1kHz
16-bit/48kHz
24-bit/44.1kHz
24-bit/48kHz
24-bit/96kHz
with direct monitoring |
| |
Platform |
| Compatible With: | | PC – PCIe x1 Connection |
| |
Minimum Operating System |
| Windows: | | Windows® 7
Windows 8® |
