General
Device Interfaces
- 802.11 b/g/n/ac Wireless LAN 1
- Four 10/100/1000 LAN ports
- One RJ-11 ADSL port
- USB 3.0 Port
- USB 2.0 Port
Antenna Type
- Six internal MIMO antennas
Standards
- IEEE 802.11ac
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.3
- IEEE 802.3u
Minimum System Requirements
- Windows 8/7/Vista/XP SP3 or Mac OS X 10.4 or higher
- Microsoft Internet Explorer 6 or higher, Firefox 1.0 or higher, Safari 1.2 or higher, or other Java-enabled browser
- Ethernet network interface
- Subscription with an Internet Service Provider (ISP)
Functionality
Security
- WPA & WPA2 (Wi-Fi Protected Access)
- Wi-Fi Protected Setup (WPS) - PIN/PBC
Advanced Features
- Enhanced Web Setup Wizard
- SharePort Web Access
- Green Ethernet
- UPnP support
- DLNA Media Server support
- Dual Active Firewall
- Network Address Translation (NAT)
- Stateful Packet Inspection (SPI)
- VPN pass-through/multi-session PPTP/L2TP/IPSec
- 802.1p QoS
mydlink Features
- Remote management
- View current upload/download bandwidth
- View currently connected clients
- View web browsing history per client
- Block/unblock client network access
- Manage wireless network details
- Accessible through a web browser, or the mydlink Lite mobile app for iOS and Android
Mobile App Support
- mydlink Lite app for Android and iOS
- SharePort Mobile app for Android and
Physical
Dimensions
Weight
Temperature
- Operating: 0 to 40 °C
- Storage: -20 to 70 °C
Hu

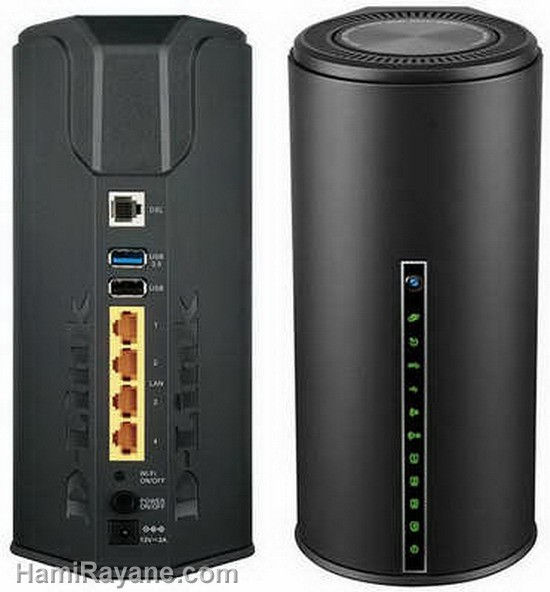

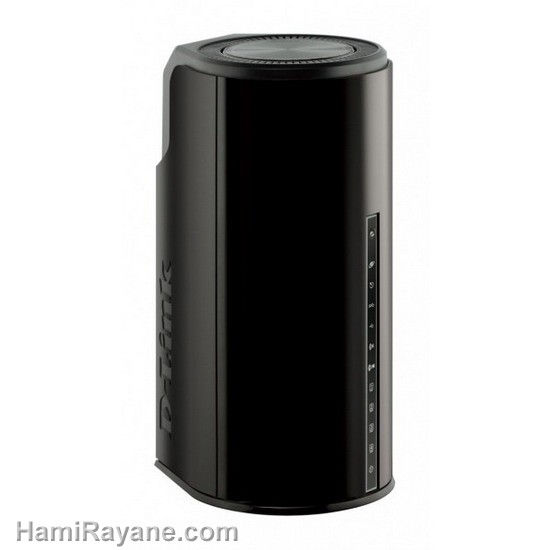

The DSL-2890AL Dual Band Wireless AC1750 Gigabit Cloud ADSL2+ Modem Router is everything you need for high-speed Internet access for your entire home. It combines an ADSL2+ modem and high-end wireless router together to create a single, easy to use device that creates and shares an Internet connection for all your devices. Connect a storage drive to the USB 3.0 or 2.0 ports to effortlessly stream your digital media library to your TV, PC, tablet, or mobile device via its DLNA media server feature.
Fast and Reliable Home Network
The D-Link DSL-2890AL Dual Band Wireless AC1750 Gigabit Cloud ADSL2+ Modem Router creates a blazing fast home network that connects all of your devices to your broadband Internet connection. Concurrent dual-band 802.11ac brings you the future of high-bandwidth wireless connectivity allowing you to stream HD video, make Internet calls, and surf the Internet from every corner of your home without interruption. Gigabit Ethernet ports provide highspeed wired connections for up to four PCs or other devices. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Access and Manage with mydlink
The Dual Band Wireless AC1750 Gigabit Cloud ADSL2+ Modem Router allows you to use the mydlink web portal and mobile apps to remotely access, view, and manage devices on your home network no matter where you are. See who’s connected to your router, change settings, or block connections, all from any Internet connected PC, or an iOS or Android mobile device. Parents can monitor what sites their children are visiting, and can stay informed and in control on the go.
File Sharing Right at Your Fingertips
The SharePort Mobile app allows you to connect a USB storage device to the DSL-2890AL and instantly share documents, movies, pictures, and music with mobile devices. You can put your music library on a USB drive and share it with your entire home. You can show photos on the living room TV while a family member watches a movie on their mobile device. You can stream media files to multiple devices without interruption, or save them to your device for offline playback. The intuitive interface lets anyone immediately connect to a variety of entertainment options stored securely on your own storage device.
Smooth Streaming with Wireless AC
The DSL-2890AL uses the latest Wireless AC technology, which can provide transfer rates of up to 1.75 Gbps* (1300AC + 450N). The router operates on both the 2.4 GHz and 5 GHz wireless bands at the same time using concurrent dual-band technology and six internal antennas. This allows you to browse the web, chat and e-mail using the 2.4 GHz band, while simultaneously streaming digital media, playing online games, or making Internet phone calls on the 5GHz band.
Designed for Optimal Wireless Coverage
The antennas inside the DSL-2890AL have been carefully designed to ensure that you will get little to no dead space in any environment. The high-powered amplifier sends the signal into the farthest corners of your home. Furthermore, the Dual Band Wireless AC1750 Gigabit Cloud ADSL2+ Modem Router’s multiple internal antennas improve wireless reception by adjusting antenna positions to where they are most needed to achieve the best possible performance.
Easy to Set Up and Secure
Setting up the DSL-2890AL is easy with the D-Link Click ’n’ Connect setup wizard. Simply open the setup utility and follow a few easy steps to get your home network connected. You can also set up a secure network with the touch of a button using Wi-Fi Protected Setup. Simply press the WPS button to instantly establish a secure connection to a new device. Rest assured that your network is secure with WPA/WPA2 wireless encryption and built-in dual-active firewall (SPI and NAT) so you can shop online and do your online banking with confidence.
* Maximum wireless signal rate derived from IEEE standard 802.11ac (draft 2.0) specifications which are subject to change. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
