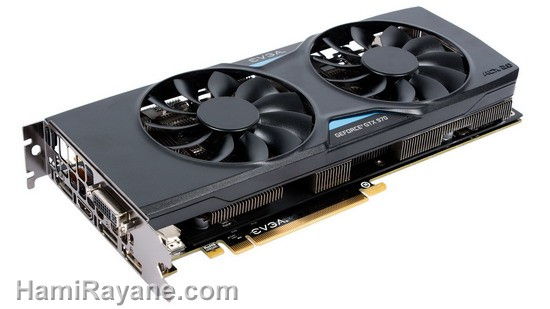

EVGA 04G-P4-3975-KR GeForce GTX 970 SSC ACX 2.0+ 4GB 256-Bit GDDR5 PCI Express 3.0 SLI Support Graphics Card
The new generation of EVGA GeForce GTX 970s have arrived with the
SSC. This enhanced model offers improved cooling, double BIOS support,
new display output configuration and 6 power phases for robust
overclocking support.
The new EVGA ACX 2.0+ cooler brings new features to the award winning
EVGA ACX 2.0 cooling technology. A Memory MOSFET Cooling Plate (MMCP)
reduces MOSFET and Memory temperatures and optimized Straight Heat Pipes
(SHP) reduce GPU temperature by an additional 5°C. ACX 2.0+ coolers
also feature optimized Swept fan blades, double ball bearings and an
extreme low power motor, delivering more air flow with less power,
unlocking additional power for the GPU.
DBI-DB NOISE INVERTER
Fans only run when necessary and turn off during idle. This means the EVGA card is completely silent when not gaming!
QSD BIOS - QUICK SWITCH DUAL BIOS
Multiple integrated BIOSes allow you to tweak and troubleshoot
with ease. The secondary BIOS also has an alternate fan curve, allowing
for ultimate cooling performance.
MMCP - MEMORY MOSFET COOLING PLATE
Full size cooling base plate makes contact with GPU memory and
MOSFETs, reducing memory temperature up to 14% and MOSFET temperature up
to 48%.
SHP - STRAIGHT HEAT PIPES
Triple 8mm straight heat pipes offer 6% better heat dissipation than bent heat pipes with reduced thermal resistance.
OPT - OPTIMIZED POWER TARGET
The power target is precisely tuned for the perfect balance of
thermal, power and performance, offering 33% more power over reference.
EVGA PRECISIONX 16 READY
Includes EVGA's popular and FREE overclocking utility that lets
you adjust voltage, change clockspeeds, monitor your card and more!
BUILT FOR DIRECTX® 12
Introducing EVGA PrecisionX™ 16 version 5.3.5 with full support for Microsoft DirectX®
12 OSD support. This latest version of EVGA PrecisionX™ adds new
features, overclocking support, functionality, and full support for the
upcoming Microsoft DirectX® 12 API.
Key Features
-
Full support for Microsoft DirectX® 12 API
-
Redesigned OSD interface with RGB color support
-
Available on Steam or as a separate download
EVGA OC SCANNER
Featuring a brand new look and layout, this popular application has been updated to show all of the GeFore® GTX™ 960 vitals.
Key Features
-
Built-in stress tester to find and report artifacts
-
Benchmark function to quickly test your performance
-
CPU Burn In Module
-
Built-in log functionality
Specs
Features
-
NVIDIA Dynamic Super Resolution Technology
-
NVIDIA MFAA Technology
-
NVIDIA GameWorks Technology
-
NVIDIA GameStream Technology
-
NVIDIA G-SYNC Ready
-
Microsoft DirectX 12 (feature level 12_1)
-
NVIDIA GPU Boost 2.0
-
NVIDIA Adaptive Vertical Sync
-
NVIDIA Surround Technology
-
NVIDIA SLI Ready
-
NVIDIA CUDA Technology
-
OpenGL 4.4 Support
-
OpenCL Support
-
HDMI 2.0, DisplayPort 1.2 and Dual-link DVI
-
PCI Express 3.0
-
EVGA ACX 2.0 Cooling
Core
-
1664 CUDA Cores
-
Base Clock: 1190 MHz
-
Boost Clock: 1342 MHz
-
Bus: PCI-E 3.0
-
2-way, 3-way SLI Ready
Memory
-
Memory Detail: 4096 MB GDDR5
-
Memory Bit Width: 256 Bit
-
Memory Clock: 7010 MHz
-
Memory Speed: 0.28 ns
-
Memory Bandwidth: 224.3 GB/s
Learn more about the EVGA 04G-P4-3975-KR
Model
- Brand
- EVGA
- Model
- 04G-P4-3975-KR
Interface
-
- PCI Express 3.0
Chipset
- Chipset Manufacturer
- NVIDIA
-
- GeForce GTX 970
-
- 1190MHz
-
- 1342MHz
- Stream Processors
- 1664 Stream Processors
Memory
-
- 7010 MHz
- Memory Size
- 4GB
-
- 256-Bit
- Memory Type
- GDDR5
3D API
-
- DirectX 12
-
- OpenGL 4.4

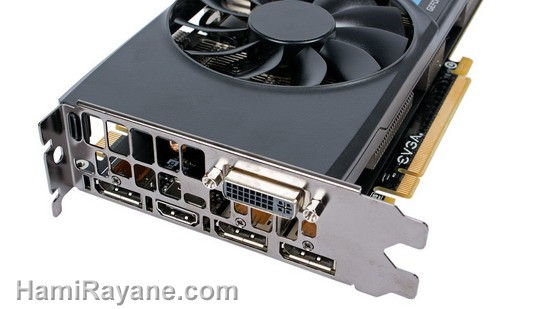

Ports
-
- 1 x HDMI
- Multi-Monitor Support
- 4
-
- 3 x DisplayPort
-
- 1 x Dual-link DVI-I
Details
- Max Resolution
- 4096 x 2160
-
- SLI Ready
- Cooler
- ACX 2.0
- Operating Systems Supported
- Windows 8 32/64bit
Windows 7 32/64bit
Windows Vista 32/64bit
- System Requirements
- 500 Watt or greater power supply.****
PCI Express, PCI Express 2.0 or PCI Express 3.0 compliant motherboard with one graphics slot.
One available 8pin PCIE connector
****Minimum system power requirement based on a PC configured with an Intel Core i7 3.2GHz processor.
- Power Connector
- 6-Pin / 8-Pin
- Dual-Link DVI Supported
- Yes
Features
- Features
- NVIDIA Dynamic Super Resolution Technology
NVIDIA MFAA Technology
NVIDIA GameWorks Technology
NVIDIA GameStream Technology
NVIDIA GSYNC Ready
Microsoft DirectX 12
NVIDIA GPU Boost 2.0
NVIDIA Adaptive Vertical Sync
NVIDIA Surround Technology
NVIDIA SLI Ready
NVIDIA CUDA Technology
OpenGL 4.4 Support
OpenCL Support
HDMI 2.0, DisplayPort 1.2 and Dual-link DVI
PCI Express 3.0
EVGA ACX 2.0 Cooling
Quick Switch Dual BIOS
1.215v+ Voltage Boost
dB Inverter
Memory MOSFET Cooling Plate
Optimized Power Target
Straight Heat Pipes
Form Factor & Dimensions
- Card Dimensions (L x H)
- 10.1" x 4.38"
