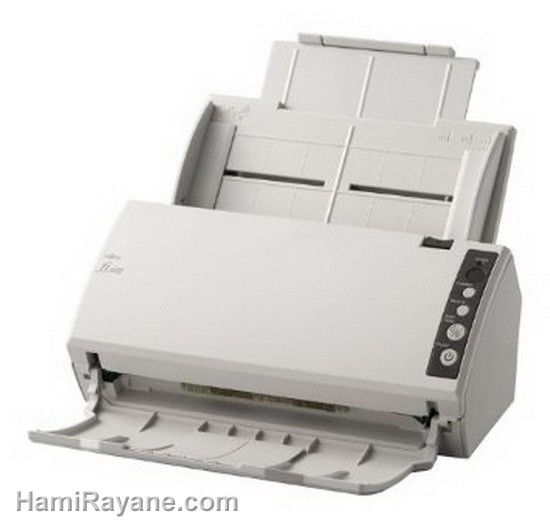

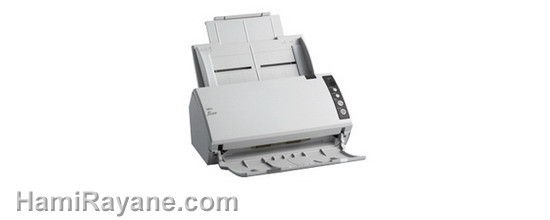

The fi-6110 is a productivity scanner that fits on your desktop. It’s
packed with powerful features, including high-speed USB 2.0
connectivity, ultrasonic double-feed detection to ensure smooth
scanning, and scanning speeds of up to 20 pages per minute.
Specifications
Model
fi-6110
Functional Specifications
Image Sensor Type
Dual Color Charge Coupled Device x 2 (CCD) image sensor
Resolution(1)
50 to 600 dpi (adjustable by 1 dpi increments, 1200 dpi)
Halftone Patterns
Dither and error diffusion
Grayscale
8-bit/1,024 level (internal), 4-bit/256 level (output)
Color(6)
24-bit, 8-bit, 4-bit
Scanning speeds
Output(2)
Simplex
Duplex
Monochrome & Grayscale @ 200dpi & 300dpi(3)
20ppm
40ipm
Color @ 200dpi & 300dpi (3)
20ppm
40ipm
Scanning Mode
Simplex and Duplex
Document Feeding Mode
Automatic document feeder (ADF)
ADF Capacity (4)
50 Sheets (A4/letter, 80 g/㎡ or 20 lb. ) (Active loadable ADF)
Daily Duty Cycle
2,000 Pages
Document Size
ADF Minimum
A8 Portrait / Landscape (52 mm x 74 mm or 2.1 in. x 2.9 in.)
ADF Maximum
A4 (210 mm x 297 mm) or Legal (216 mm x 355.6 mm or 8.5 in. x 14 in.)
Interface
High-speed USB 2.0/USB 1.1 (B type connector)
OS Support
Windows® 10 (32-bit/64-bit), Windows®
8 / 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Vista®
(32-bit/64-bit), Windows XP® (32-bit/64-bit), Windows Server® 2012
(64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2008
(32-bit/64-bit), Windows Server® 2008 R2 (64-bit)
JPEG Compression
Hardware real time JPEG compression available
Physical Specifications
Power Requirements (auto-switching)
100-240 VAC ± 10%
Power Consumption
Operating mode: 28W or less (Sleep mode: 5.36W or less)
Operating Environment
Temperature
5° to 35°C (42° to 95°F)
Relative Humidity
20%-80% (non-condensing)
Dimensions (WxDxH)(7)
292 mm x 143 mm x 130 mm (11.5 in. x 5.6 in. x 5.1 in.)
Weight
3 kg (6.61 lbs.)
Inbox Contents
AC Adapter, AC Cable, USB Cable, Carrier Sheet, Setup DVD-ROM, Documentation
Bundled Software (DVD format)
PaperStream IP (TWAIN/ISIS)
Driver, Software Operation Panel, Error Recovery Guide, PaperStream
Capture, ScanSnap Manager for fi Series, ABBYY FineReader for ScanSnap
Options
2D Barcode for PaperStream, Carrier Sheets
Image Processing Function
Auto color detection, Automatic
page size detection, Automatic Rotation, Upper lower separation,
Multi-image, Blank page skip, Error diffusion, Dither, Dropout color (R,
G, B, None,white, Specified,Saturation), Image Emphasis, Simplified
DTC, Advanced DTC, Moire removal(sup>(5)(5)
