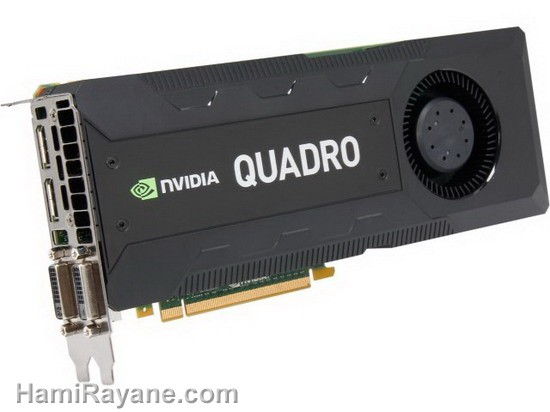

Amazing 3D Application Performance & Capability
The NVIDIA Quadro K5200 gives you amazing application performance and capability, making it faster and easier to accelerate 3D models, render complex scenes, and simulate large datasets. 8GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there’s the all-new display engine that drives up to four displays natively with DisplayPort 1.2 support for ultra-high resolutions like 3840 x 2160 at 60 Hz with 30-bit color. The Quadro K5200 is also fully compatible with NVIDIA Quadro Sync, which allows you to frame-lock multiple displays together, and also supports NVIDIA’s SDI input and output boards for broadcast or digital cinema production workflows.
Designed and built specifically for professional workstations, NVIDIA Quadro GPUs power more than 200 professional applications across a broad range of industries including manufacturing, media and entertainment, sciences, and energy. Professionals trust them to realize their most ambitious visions— whether its product design, visualization and simulation, or spectacular visual storytelling—and get results to market faster.
- See more at: https://www.pny.com/nvidia_quadro_k5200#sthash.AdF...
Product Specifications
| CUDA Cores | 2304 |
| GPU Memory | 8GB GDDR5 |
| Memory Interface | 256-bit |
| Memory Bandwidth | 192GB/s |
| System Interface | PCI Express 3.0 x16 |
| Maximum Power Consumption | 150 W |
| Energy Star Enabling | Yes |
| Thermal Solution | Ultra-quiet active fansink |
| Form Factor | 4.376” H x 10.50” L, Dual Slot |
| Display Connectors | DVI-I DL + DVI-D DL + DP 1.2 + DP 1.2 |
| DisplayPort 1.2 | Yes |
| DisplayPort with Audio | Yes |
| DVI-D Single-Link Connector | Via included adapters |
| VGA Support | Via included adapter |
| Number of Displays Supported | 4 |
| Maximum DP 1.2 Resolution | 4096 x 2160 at 60Hz (directly attached) |
| Maximum DVI-I DL Resolution | 2560 x 1600 at 60Hz |
| Maximum DVI-I SL Resolution | 1920 x 1200 at 60Hz |
| Maximum VGA Resolution | 2048 x 1536 at 85Hz |
| HDCP Support | Yes |
| Professional 3D Support | Yes, via included stereo connector bracket |
| Quadro Sync Compatible | Yes |
| HD SDI Capture/Output Compatible | Yes |
| NVIDIA GPU Direct Compatible | Yes |
| Graphics APIs | Shader Model 5.0, OpenGL 4.4, DirectX 11 |
| Compute APIs | CUDA, DirectCompute, OpenCL |
| NVIEW | Yes |
| NVIDIA Mosaic | Yes (Windows 8.1, 8, 7, and Linux) |
| NVIDIA 3D Vision and 3D Vision Pro | Yes |
| Warranty | 3 Years |
| PNY Part Number | VCQK5200-PB |
Minimum System Requirements
- Microsoft Windows® 8.1, 8, 7, Vista, Linux®, or Solaris®
- PCIe x16 expansion slot
- 2GB or more of system memory, 8GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray or DVD-ROM drive
- Internet connection (if preferred for driver installation)
- DisplayPort, DVI, or VGA compatible display(s)
Package Contains
- NVIDIA Quadro K5200 professional graphics board
- 6-pin auxiliary power cable
- Stereo connector bracket
- Two DisplayPort to DVI-D SL adapters
- DVI-I to VGA adapter
- Driver DVD for Windows 8.1, 8, 7, and Vista (32- and 64-bit)
- Printed QuickStart Guide
Features & Benefits
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA GigaThread engine with dual copy engines
- Shader Model 5.0 (OpenGL 4.4 and DirectX 11)
- Up to 16K x 16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 128-bit floating point performance
- 32-bit per component floating point texture filtering and blending
- 64X full scene antialiasing
- FXAA and TXAA full scene antialiasing
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 encoder
- Blu-ray dual-stream hardware accelerating (supporting HD picture-in-picture playback)
- Quadro Boost automatically adjusts the GPU engine throughput to maximize application performance.
Parallel Computing Capabilities
- SMX architecture (streaming multi-processor design that delivers greater processing and efficiency)
- HyperQ (allows multiple CPU cores to simultaneously utilize a single K5200 GPU to execute independent compute kernels)
- Dynamic Parallelism (GPU dynamically spans new threads without going back to the CPU)
- API support including: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- NVIDIA Parallel Data Cache hierarchy (configurable L1 and unified L2 caches)
- Error-Correction Code (ECC) memory
- 64KB of RAM (configurable partitioning of shared memory and L1 cache)
Advanced Display Features
- 30-bit color (10-bit per each red, green and blue channel)
- Support for any combination of four connected displays
- DisplayPort 1.2 (up to 4096 x 2160 at 60Hz and 2560 x 1600 at 120Hz)
- DVI-I Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
- DVI-D Dual-Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz)
- Internal 400MHz DAC DVI-I output (analog display up to 2048 x 1536 at 85Hz)
- DisplayPort 1.2, HDMI 1.4, and HDCP support (HDMI requires 3rd party adapter)
- 10-bit internal display processing
- NVIDIA 3D Vision™ technology, 3D DLP, interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- Support for NVIDIA Quadro Mosaic, NVIDIA NVIEW multi-display technology, NVIDIA Enterprise Management Tools
- Support for large-scale, ultra-high resolution visualization using the NVIDIA SVS platform which includes NVIDIA Mosaic, NVIDIA Sync and NVIDIA Warp/Blend technologies
DisplayPort and HDMI Digital Audio
- Dolby Digital (AC3), DTS 5.1, multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176KHz, and 192KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
GPU Features
NVIDIA CUDA Architecture
Parallel-computing architecture that tightly integrates advanced visualization and compute features to significantly accelerate professional workflows.
NVIDIA Scalable Geometry Engine
Dramatically improves geometry performance across a broad range of CAD, DCC and medical applications, enabling you to work interactively with models and scenes that are an order of magnitude more complex than ever before.
Large Framebuffers with Ultra-Fast Bandwidth
Large GPU memory with fast bandwidth for display of complex models and scenes, as well as computation of large datasets.
Hyper Q
Slashes CPU idle time by allowing multiple CPU cores to simultaneously utilize a single Kepler GPU, dramatically advancing programmability and efficiency.
NVIDIA Parallel DataCache™
Supports a true cache hierarchy combined with on-chip shared memory. L1 and L2 caches drive exception throughput, accelerating features such as real-time ray tracing, physics, and texture filtering.
Dynamic Parallelism
Simplifies GPU programming by allowing programmers to easily accelerate all parallel nested loops – resulting in a GPU dynamically spawning new threads on its own without going back to the CPU.
Dual Copy Engines
Enables the highest rates of parallel data processing and concurrent throughput between the GPU and host, accelerating techniques such as ray tracing, color grading and physical simulation.
Bindless Textures
Dramatically increases the number of unique textures available to shaders at run-time, enabling vastly more different materials and richer texture detail in scenes.
NVIDIA Streaming Multiprocessor
Delivers more processing performance and efficiency through this new, innovative streaming multiprocessor design that allows a greater percentage of space to be applied to processing cores versus control logic.
H.264 encoder
Dedicated H.264 encode engine that independent of 3D/compute pipeline and delivers faster than real-time performance for transcoding, video editing, and other encoding applications (requires application support).
PCI Express 2.0 Compliance
Supports data transfer rate up to 5 GT/sec per lane for an aggregate bandwidth of 16GB/sec bi-directional (32 GB/s bi-directional and 16GB/s in each direction.)
Unified Driver Architecture (UDA)
Guarantees forward and backward compatibility with software drivers, simplifying upgrading to a new Quadro solution whenever you're ready.
Ultra-Quiet Design
Silent cooling design enables lower acoustics for an ultra-quiet desktop environment.
NVIDIA GPU Boost
Maximum application performance through automatic adjustment of the GPU clock to take maximum advantage of the power and thermal headroom of the card in real-time.
Image Quality
Full-Scene Antialiasing (FSAA)
Up to 64X FSAA for dramatically reducing visual aliasing artifacts or "jaggies," resulting in unparalled image quality and highly realistic scenes.
NVIDIA FXAA and TXAA
Reduces visible aliasing and delivers higher image quality without the performance hit by harnessing the power of the GPU's CUDA cores and new film-style AA techniques.
GPU Tessellation
Quadro Tessellation Engines automatically generate finely detailed geometry for cinematic quality environments and scenes, without sacrificing performance.
16K Texture and Render Processing
Provides the ability to texture from and render to 16K x 16K surfaces. Beneficial for applications that demand the highest resolution and quality image processing.
Display Features
NVIDIA Quadro Mosaic Technology
Enables transparent scaling of the desktop and applications across up to 16 displays from 4 GPUs from a single workstation while delivering full performance and image quality.
Multi-Display Support
All-new display engine drives up to four displays simultaneously and fully supports the next generation Display Port 1.2 standard capable of resolutions such as 3840 x 2160 at 60Hz, making it easy to deploy multiple displays across a desktop, build an expansive digital signage wall, or create a sophisticated stereoscopic 3D CAVE environment.
NVIDIA NVIEW Advanced Desktop Software
This software delivers maximum flexibility for single large display or multi-display options, providing unprecedented end-user control of the desktop experience for increased productivity.
DisplayPort 1.2 Support (with Audio)
Compact and secure DisplayPort 1.2 connectors support multi-stream technology, stream cloning and ultra-high-resolution panels (up to 3840 x 2160 at 60Hz ). This enables maximum range, resolution, refresh rate, and color depth designed to support the latest display technologies.
HD SDI Capture and Output
Industry's only GPU-accelerated solution for real-time acquisition, processing, and delivery of high-resolution SDI video, across traditional and now 3D video broadcast, environments. Supports uncompressed 8-, 10-, 12-bit SDI via available Quadro SDI Capture and Quadro SDI Output cards.
Quadro Sync
Synchronizes the display and image output from one system or across a cluster of multiple systems. The Quadro Sync board manages up to 16 displays from 4 GPUs in one system, reducing the number of machines needed to power a video wall or multi-projector visualization environment, and supports image and frame synchronization between up to four GPUs when running Quadro Mosaic or independent GPUs in cluster. Quadro Sync also allows synchronization to an external timing source (also known as genlock or house sync). Quadro Sync enables advanced visualization systems to scale the resolution of the display surface with multiple projectors or displays with standard applications or applications designed for clusters.
NVIDIA 3D Vision and 3D Vision Pro
Advanced active shutter glasses that deliver crystal-clear stereoscopic 3D visualization for the most immersive experience. Infrared (3D Vision) or RF (3D Vision Pro) technology enable a range of immersive environments from your desktop workstation to collaborative work spaces. 3D Vision and 3D Vision Pro are sold separately.
OpenGL Quad Buffered Stereo Support
Provides a smooth and immersive 3D Stereo experience for professional applications.
Professional 3D Stereo Synchronization
Enables robust control of stereo effect through a dedicated three-pin mini-din connection to directly synchronize 3D stereo hardware to Quadro graphics card.
Deep Color Processing and Display
Preserve color detail and precision throughout the processing and display pipeline for smooth gradients transitions, even on high dynamic range imagery. Each color component can be processed at up to 32-bit floating point precision and displayed at up to 12-bit precision with supported DisplayPort 1.2 or HDMI 1.4 displays.
Software Support
NVIDIA CUDA Parallel Computing Architecture
Quadro solutions leverage general-purpose GPU computing using standard programming languages like C/C++ and Fortran, and emerging APIs such as OpenCL and Direct Compute. This broad adoption of CUDA accelerates techniques like ray tracing, video and image processing, and computation fluid dynamics.
NVIDIA GPUDirect
NVIDIA GPUDirect capability increases compute performance when data throughput or latency reduction are key considerations by allowing direct access to GPU memory by 3rd-party devices such as SDI video adapters, NICs and SSDs.
NVIDIA GPUDirect for Video
NVIDIA GPUDirect for Video technology allows 3rd party hardware to communicate directly with NVIDIA GPUs. By taking advantage of this new API the historical issues of introducing too much delay or latency are gone. With NVIDIA GPUDirect for Video, devices are fully synchronized and the CPU doesn't waste cycles copying data between device drivers.
Multi-GPU Technology
NVIDIA Multi-GPU Technology
NVIDIA Multi-GPU powered workstations combine the visualization and interactive design capability of multiple GPUs, by leveraging any combination of Quadro and Tesla GPUs to intelligently scale the performance of your application and dramatically speed up your production workflow.
