DA 700 is certified with 80 plus bronze with up to 85% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the ideal choices for
multi-purpose usage. Double layer EMI filters protect from magnetic
interference and restrains noise while operating.
Description
DA 700 is certified with 80 plus bronze with up to 85% electrical
efficiency enabling lower heat generation and lower operating cost.
Outstanding and stable performance makes it one of the ideal choices for
multi-purpose usage. Double layer EMI filters protect from magnetic
interference and restrains noise while operating.
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%.
Click here to view the certification info on Official 80 PLUS website.

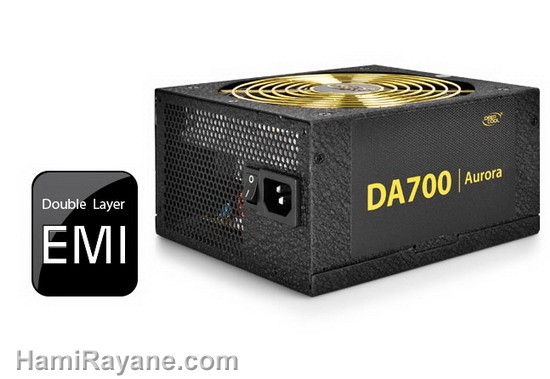

Double Layer EMI Filter
Double Layer EMI Filter ensures low level of electromagnetic interference to keep your electronic devices uninterrupted.
Modular Cable System
With modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.
Technical Spec
|
Model |
DA700 |
|
Type |
ATX 12V V2.31 |
|
Certifications |
80PLUS Bronze |
|
Dimension |
150×160×86mm (W x L x H) |
|
Output Capacity |
700W |
|
Input Voltage |
100~240V |
|
Input Current |
10A |
|
Input Frequency Range |
47~63Hz |
|
Fan Size |
140mm Blue LED |
|
PFC |
Active PFC (>0.99) |
|
Power Good Signal |
100-500ms |
|
Hold Up Time |
>16ms |
|
Efficiency |
85% Under Typical Load |
|
Protection |
OVP / UVP / SCP / OPP / OTP |
|
Operation Temperature |
0~40°C |
|
Regulatory |
CE / FCC / CCC / CB / EAC / TUV |
|
MTBF |
120,000 Hours |
