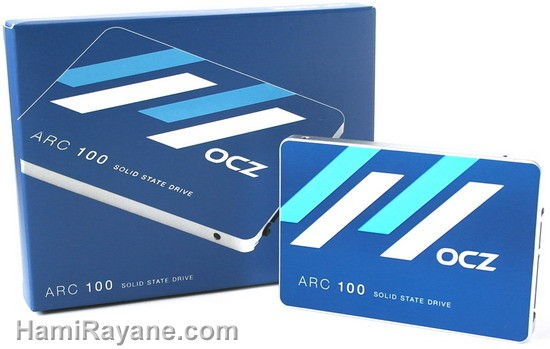

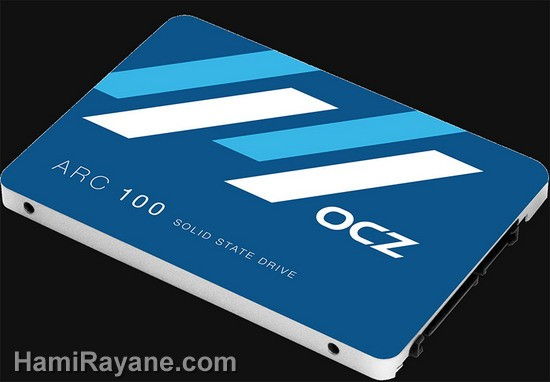

OCZ ARC 100 ARC100-25SAT3-480G 2.5" 480GB SATA III MLC Internal Solid State Drive (SSD)

Learn more about the OCZ Storage Solution ARC100-25SAT3-480G

Model

Brand

OCZ

Series

ARC 100

Model

ARC100-25SAT3-480G

Device Type

Internal Solid State Drive (SSD)

Used For

Consumer

Details

Form Factor

2.5"

Capacity

480GB

Memory Components

MLC

Interface

SATA III

Controller

Barefoot 3 M10

Performance

Max Sequential Read

Up to 490 MB/s

Max Sequential Write

Up to 450 MB/s

4KB Random Read

Up to 75,000 IOPS

4KB Random Write

Up to 80,000 IOPS

MTBF

2,000,000 hours

Features

Features

Next Generation A19nm MLC NAND Flash
Cutting-edge A19nm process geometry NAND offers excellent value for consumer desktops and laptops

Proprietary
Proprietary Barefoot 3 M10 controller technology delivers superior sustained speeds over the long term

Lasting Performance
Advanced suite of NAND flash management to analyze and dynamically adapt as flash cells wear

Bang for the Buck
Designed for value-minded users who want a performance SSD with no tricks up its sleeve

Enhanced Endurance
Emphasis on endurance, rated for 20GB/day of host writes for 3 years (typical client workloads)

Superior Mixed Workload Performance
Excels in both incompressible and compressible data types such as multimedia, encrypted data,. ZIP files and software

Ultra Slim
Sleek alloy housing offers ultra-slim sub-7mm z-height for use in the latest thinner form factor notebooks

Secure
Superior reliability with in-house technology and high quality components based on the latest technology

Environmental

Power Consumption (Idle)

0.6W

Power Consumption (Active)

3.45W

Operating Temperature

0°C ~ +70°C

Storage Temperature

-45°C ~ +85°C

Max Shock Resistance

1000G/0.5ms

Max Vibration Resistance

Operational: 2.17Grms (7-800Hz)
Non-operational: 3.13Grms (5-800Hz)

Dimensions & Weight

Height

6.70mm

Width

69.75mm

Depth

100.20mm

Weight

110g
