3.75G HSUPA USB AdapterMA180
- Up to 7.2Mbps download and 5.76Mbps upload (Network Type: WCDMA)
- Micro SD card slot for up to 32GB of optional storage
- Bundled utility provides quick & hassle-free installation
- Internal antenna, no batteries or cables required
- Fast USB 2.0 connection to notebook/desktop computers
3.75G HSUPA USB AdapterMA180
- Up to 7.2Mbps download and 5.76Mbps upload (Network Type: WCDMA)
- Micro SD card slot for up to 32GB of optional storage
- Bundled utility provides quick & hassle-free installation
- Internal antenna, no batteries or cables required
- Fast USB 2.0 connection to notebook/desktop computers
High Speed Data Transfer
With Up to 7.2Mbps download and 5.76Mbps upload speeds, the MA180 gives users a fluid Internet surfing experience. The device’s high upload speed allows users to quickly send large files, such as e-mail with attachments, photos or business documents.
Micro SD Card Slot
MA180 is equipped with a micro SD card slot that’s compatible with micro SD cards with capacity up to 32GB allowing users to use MA180 as a 3G USB modem and a USB memory stick at the same time.
Plug and Play
Using the MA180’s bundled utility, users can get connected and enjoy the Internet in as little as two steps.
- 1. Insert the MA180 3G USB Adapter
- 2. Run Utility – And you‘re connected!
Connection Anywhere！
Connect to your PC
Connect to your 3G router
Connect to your PC
Conne
| HARDWARE FEATURES |
|---|
| Standards and Protocols | WCDMA Network |
|---|
| Interface | USB 2.0 |
|---|
| Data Rates | DL: 7.2 Mbps, UL: 5.76 Mbps |
|---|
| LED Indicator | Two-color LED provides status information |
|---|
| Dimensions ( W x D x H ) | 3.89 x 1.09 x 0.55 in. (99 x 28 x 14 mm) |
|---|
| Antenna Type | Internal antenna |
|---|
| GSM Band | 850/900/1800/1900 MHz |
|---|
| HSUPA Band | 2100 MHz |
|---|
| Micro SD Card Reader | Supports standard Micro SD cards up to 32 GB |
|---|
| SIM Slot | Standard 6-Pin SIM card interface |
|---|
| OTHERS |
|---|
| Certification | CE, FCC, RoHS |
|---|

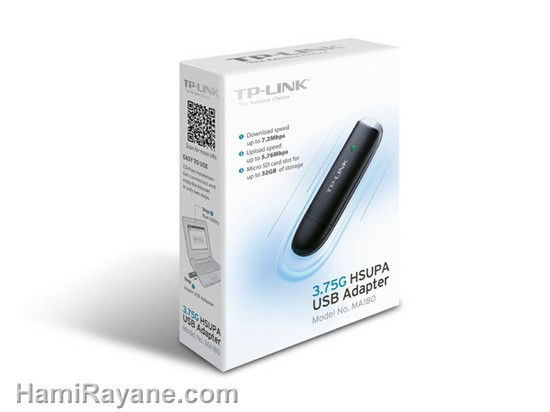

| Package Contents | MA180 3.75G HSUPA USB ADAPTER
Quick Installation Guide |
|---|
| System Requirements | Windows 7 (32/64bits), Windows Vista (32/64bits), Windows XP (32/64bits) |
|---|
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
