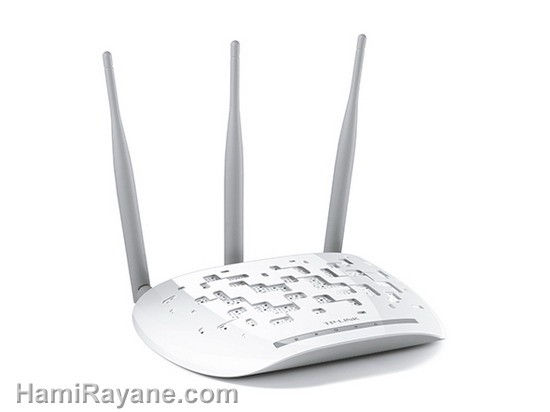

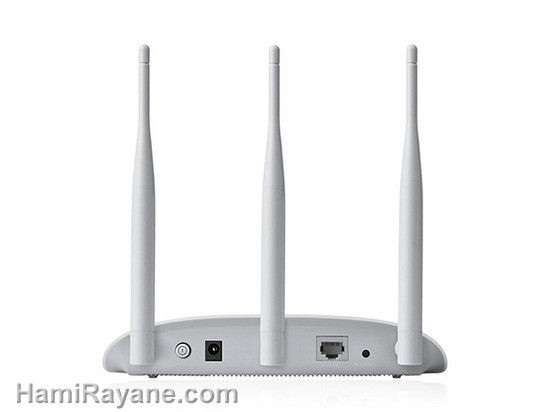

TP-LINK TL-WA901ND IEEE 802.11b/g/n 300Mbps 3 antennas Wireless N Access Point

Learn more about the TP-LINK TL-WA901ND

Model

Brand

TP-LINK

Model

TL-WA901ND

Spec

Standards

IEEE 802.11b/g/n

Wireless Data Rates

Up to 300Mbps

WPA/WPA2

WPA2

Frequency Band

2.4GHz - 2.4835GHz

Antenna

4dBi Detachable Omni Directional Antenna x 3

Transmitted Power

20dBm(max. EIRP)

Receiver Sensitivity

270M: -68dBm@10% PER
130M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Modulation

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

Interface

Ethernet Port

Dimensions

6.9" x 4.7" x 1.1"

Temperature

0°C - 40°C (32°F - 104°F)

Humidity

10% - 90% (Non-Condensing)

Features

Features

300Mbps wireless transmission rate, brings smooth wireless N experience
Supports multiple operating modes (Access Point, Client, Universal/ WDS Repeater, Wireless Bridge)
Easily setup a WPA encrypted secure connection at a push of the QSS button
Up to 30 meters Power over Ethernet capability for flexible deployment

Manufacturer Warranty

Parts

1 year limited

Labor

1 year limited
